SKU: Col40 ,

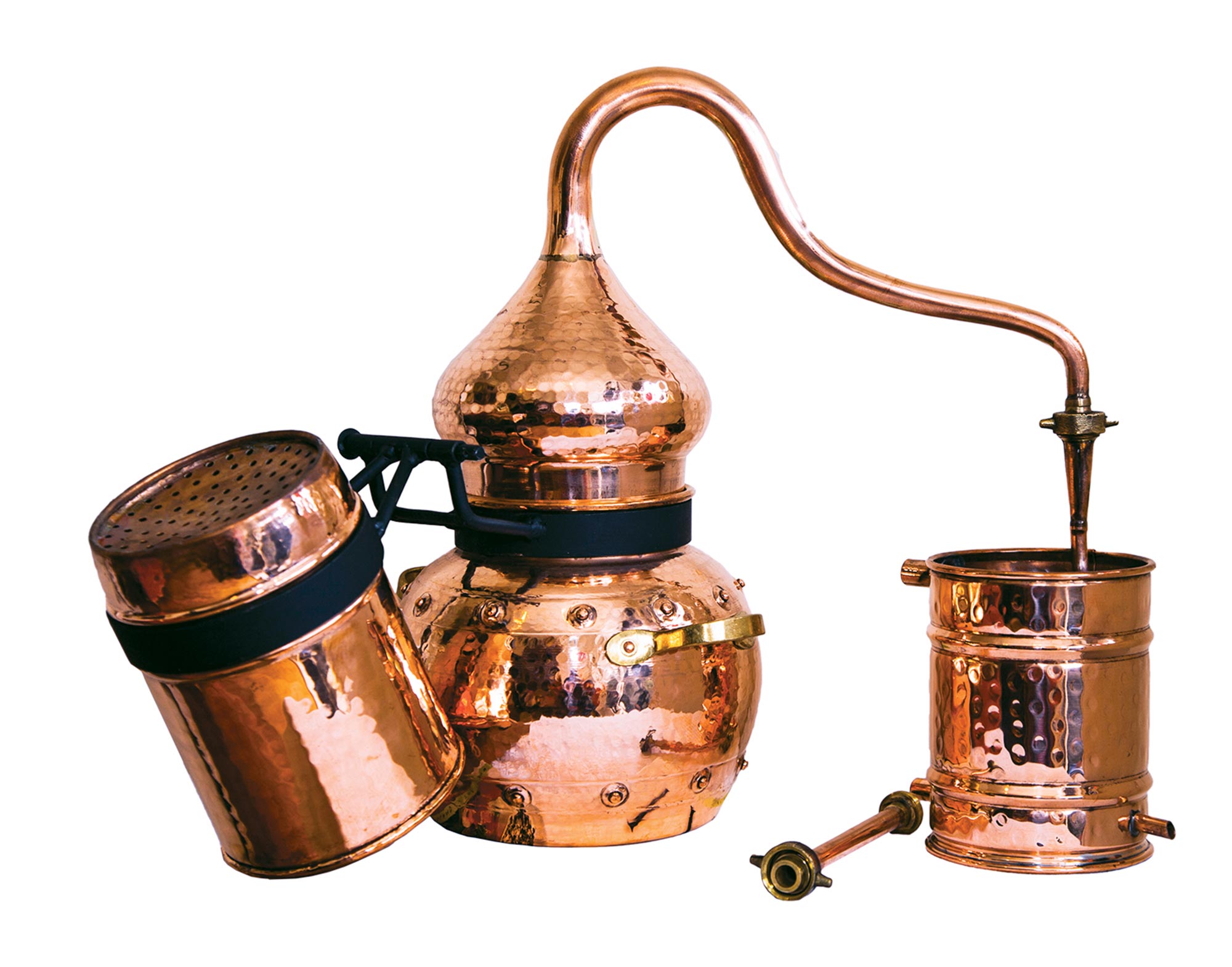

Alembic Column 40L

$2,725

Free Foundation Distillation Course when you buy this still

*Choose from Distilling Hydrosol, Distilling Essential Oil or Distilling Alcohol

The Alembic Column is a beautiful and versatile still that can be used to produce essential oil, hydrosol and spirits. Traditionally it is used for distilling must (grape skins) to make grappaalso known as aguardente (fire water). We’ve made grappa in the past using traditionally pressed grapes from our local vineyard, however these days we use our alembic columns to make hydrosol or essential oil. We often use this still for ‘combo distilling’ as you can make a beautiful, saturated hydrosol by adding plant matter to both the pot and the column.

Uses

The Alembic Column 40L will produce essential oils, hydrosol, spirits and gin.

This versatile still can be used with or without its column, and has an additional sieve plate. With the column it’s perfect for steam distillations of essential oils and combo distillations for essential oil and hydrosol. Remove the column and it becomes a pot still, suitable for straight hydro distillations and producing alcohol from washes, mashes and wine ferments. The 40L column is also used to produce aromatic spirits, and some artisan and commercial distillers prefer to use this still to produce their small-bach vapour-infused gin (by stashing their botanicals in the column).

This size suits

The Alembic Column 40L is a great medium-sized still, that suits artisan essential oil producers and spirit distillers, and is great for small businesses.

It’s a top-seller for distillers with lifestyle blocks or access to large amounts of botanicals, as it’s great for producing more significant quantities of hydrosol and essential oil, while still allowing growers to be intimately involved with the process. It is ideal for making larger batches of spirit from mash or wine ferment, and you can use the column to vapour-infuse your gin—with a second sieve plate at the top of the column for layering botanicals. (Follow these links to read more on how our customers use their 40L for lavender distilling and gin-making.)

Volume and Yields

40L refers to the total volume of the pot, not the max fill volume nor the yield (which will be less than this). See the size guide in our FAQs below for more info on min and max fill levels.

Average distillation time is 3hrs and can yield:
Hydrosol: 7–10L (approx)
Alcohol: 6L @45% ABV (approx) from a wash/wine ferment
Gin (flavouring run): 25–30L @42 ABV (approx)
EO: Yield will depend on plant type and weight, and varies greatly. 20–200ml is a rough scale guide.

*Please note that all information on yields is approximate, and is given as a guide to help you select the size still best suited for your needs. There is much more detailed information on yields in our courses. Please get in touch with us if you have any questions.

Comes with
  • Dome (with brass thermometer).
  • Column (with additional sieve plate)
  • Pot
  • Extension Pipe
  • Condenser Bucket
  • Bag of rye flour (if based in New Zealand).
Dimensions
  • Volume 40L
  • H: 139cm x W: 91cm x D: 49
  • Weight: 19.5kg
Other Equipment

We recommend heating the Alembic Column 40L with the 30cm gas burner and cooling with the 20L-100L pump. To collect and measure your distillate use one of our glassware kits:  the Alcohol Kit, or Essential Oil Kit. To prevent botanicals from sticking to the bottom of your pot we recommend using a copper sieve plate. You also need a large vessel to hold water for the condenser buckets water cooling system.

Note on International Shipping

The Alembic Column 40L pushes the size limit for our international courier. Depending on your location we may need to send it via freight. Contact us for a shipping quote if you are outside of New Zealand and Australia.

Our copper alembics are handcrafted in a small artisan factory outside Porto, Portugal. We are fortunate to get a shipment once a year, as demand worldwide for these beautifully crafted stills has increased dramatically.

3 in stock (can be backordered)

FAQ's

Free shipping in NZ

Alembics offers free shipping on all products NZ-wide.

We are committed to providing prompt and friendly service, and aim to dispatch orders as soon as possible after we receive payment. Parcels can take up to 7 working days within New Zealand. We ship with NZPost or Sealink Logistic.

International shipping

If you are purchasing from overseas there will be a freight cost for your still. If this is not processed at checkout we will contact you with a shipping quote.

Australia—Shipping costs are currently calculated at checkout for all our Australian customers.

Rest of the world—As shipping costs vary depending on package size, destination and carrier we advise other international customers to contact us, and we’ll provide you with a shipping estimate for your location. Please don’t hesitate to get in touch, we are happy to help.

Shipping times—We are committed to providing prompt and friendly service, and aim to dispatch orders as soon as possible after we receive payment. Shipping times are variable depending on destination. We ship with NZ Post or Sealink Logistics or Golandseaair Logistics. You can also request express shipping via DHL.

If you are an international customer, you may have to pay tax or duty on your purchase at the port of entry.

Packaging and returns

We do our best to carefully pack stills to protect them from damage—that’s why we use a lot of packaging, though as much is recycled as possible (we’ve found egg cartons work a treat). But copper is a soft, malleable metal and rough handling by courier companies can sometimes result in small dents. These can be easily tapped out by covering a hammer head with a cloth and gently tapping the inside of the dent until it pops out.

Please contact us if there is extensive damage and we will replace your still.

Quality assurance

All our copper stills are made in Portugal with the highest-quality materials and have brass handles and fittings. The thickness of our copper ranges from 0.7mm to 1mm depending on the size and style of the still.

Copper is a precious metal prized by alchemists and distillers for centuries. Throughout time, ancient and modern cultures alike have valued copper for its superior purifying qualities. Spirits from copper stills taste better: cleaner, and purer than their steel counterparts. Copper also has a strong aesthetic appeal that many people are invariably drawn to.

Out of stock—can I order it?

Yes, if a still is out of stock, you will see a note on our product page about pre-ordering (including any benefits, discounts and estimated arrival dates).

If you have pre-ordered a still, our friendly team will contact you with the estimated date of arrival, or if you’d like to know more in advance, get in contact with us.

Why choose Alembics?

Alembics is committed to supplying you with top-quality products and friendly, helpful service. All our copper stills are of the highest quality.

Alembics is a small, New Zealand registered business. We’ve been operating since 2009. By supporting us you’re supporting local kiwis and their families.

Being a New Zealand registered business means we uphold the Consumer Guarantees Act of 1993, so if anything happens to your purchase we’ll do what it takes to set it right.

Choosing the right still for you

Copper alembic stills come in all shapes and sizes. Finding the right one for you depends on what you are planning to distil, and what volume you want to produce.

This helpful free video on Types of Stills runs you through the main types of stills we use at Alembics, and what they are best suited for. It’s designed to help you decide which still is best for you.

Get in touch if you need any help. We’re more than happy to discuss what you want to achieve, and suggest which still we think will be best suited for the job.

Size guide

An important note on sizing: The stills size (3L, 5L etc…) refers to the total volume of the still’s pot or boiler, not the max fill volume or the yield/output you will get (which will be less).

Stills have a minimum and maximum fill level (30% and 80% respectively). So for a 3L still the minimum fill is 900ml (30%) and maximum is 2.4L (80%). See the full table here.

The size you choose will depend on what you want to produce. Helpful questions to ask yourself include:

Are you distilling for fun at home or are you looking into product development? You may suit a small still for experimenting and trial runs.

When beginning, we often recommend people start out with small stills (anywhere from 3–10L) because:
  • They’re easy to set up
  • It’s a relatively small capital outlay
  • They use smaller amounts of plant material
  • They take less time, as these are relatively quick distillations

It’s a great way to learn the techniques and discover where you want to go with distillation. Because it’s very hands-on, you’ll get a great grounding in the mechanics of distillation that will allow you to become confident in your process, and that will serve you well when you size up.

Do you have access to a lot of botanical resources, or are you planning on using what you can grow in your own garden? You can achieve a lot with small stills—great for batch distilling where you can run several distillations a day in times of plenty. If you have large resources, larger stills (10L plus) and longer distillations may be more efficient for you.

Are you planning on setting up a small business, artisan distillation outfit or producing essential oils for a small business? You may want to look into some of our larger sizes (10L plus).

Please get in touch if you need help. We’re more than happy to discuss what you want to achieve, and suggest which one we think will be best suited for the job.


Set-up and accessories
If you are new to distilling, here is a helpful list of things you will need to get set up:
  • Heat source
  • Submersible water pump and plastic tubing
  • Water receptacle
  • Beakers, measuring tools and botanicals
Or you could consider a distillation kit. We have put together full instructions on how to set up your workspace and get your still going in our free video Still Cleaning & Care, online at The Alembics Lab.
Am I better off with a distillation kit?

We often recommend that those new to distilling purchase one of our distillation kits, as they arrive at your door with everything you need to begin distilling.

Distillation kits are available for a variety of still types and sizes—we offer hydrosol, essential oil, spirit and gin kits. These include your still, submersible pump and hose, and relevant specialist equipment (such as an alcohol kit where applicable).

Pumps and hotplates are set to New Zealand wall sockets. If you are purchasing from overseas you will also need a wall adaptor.

Cleaning and Maintenance

It is essential to clean your new still before you start distilling, to make sure it’s free from all residue left over from the manufacturing process.

We always recommend using a rye flour slurry (rye flour mixed with hot water) for the first clean. This may sound odd, but time-and-time again we see that a good rye flour clean is the most effective, simple and natural way to remove the dust and linseed oil residue that is part of the copper manufacturing process.

For ongoing best results, we also recommended that you follow our maintenance processes and cleaning tips before beginning a new distillation.

We’ve put all this information together for you in a free Still Cleaning & Care video that demonstrates set up, cleaning and maintenance (including the initial rye flour clean).

Note: our smaller stills are joined by riveted unions. This not only gives them an attractive appearance but acts to strengthen them. To seal the rivets and protect stills from leaks a food-grade linseed sealant is used on the inside of the still. This will wear away over time. Don’t be surprised to see some small flakes in the bottom of the pot, post-distillation. These particles are too heavy to come across in the distillate, and if you follow our cleaning recommendations shouldn’t be detectable at all.

How to use your still

Alembics is dedicated to helping people to enter distilling, starting on a small and sustainable scale.

You’ll find a list of resources on our How To page, including links to these free resources:

You can also learn how to distil hydrosol, essential oil, alcohol and gin with us in our online courses at The Alembics Lab. Or keep your eyes out for live in-person workshops near you.
